Crankshaft Multigauging

CRANKSHAFT MULTIGAUGING (2 Wheelers)

To check:

  • Outside Diameters (2 / 3 Places)
  • Taper
  • Run Out
  • Inside Dia and Grouping
  • CD
  • Keyway – width, depth

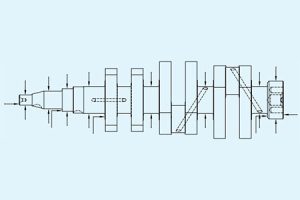

CRANKSHAFT MULTIGAUGING (4 Wheelers)

MGPL supplies total solution measuring following parameters of crankshafts:

  • Pin Diameter & Ovality (Convexity if required)Journal Diameter and Ovality (Convexity if required)
  • Flange End & Gear End Diameter
  • Throw (Center Distance)
  • Flange end, Gear End
  • Run Out w.r.t Journal PIN Width, Woodruff Width
  • Marking machine can be added
  • Sensor poka yoke can be provided for Pin Dia, Jr. Dia and Runout measurement if required
